Product Description
S265-12 M12 NVME server case
This S265-08 M12 server case is made of high-quality environmentally protection 1.0mm SGCC materials, anti-fingerprint,corrosion-resistant, in line with EMC design standards, and has excellent anti-electromagnetic interference and anti-radiationcapabilities.
There is enough capacity inside the chassis to install a motherboard with a size less than or equal to 12''*13'', and there are 8pcs 3.5-inch hot-swap hard drives compatible with 2.5-inch hard drives. The buckle design on the hard disk box can make the hard disk lock more firmly and prevent the hard disk from loosening. The chassis supports standard 2U power supplies and redundant power supplies.
This computer case has a good cooling system and comes standard with 3 8025 hot-swappable ball fans, which can form a good cooling air duct inside the case to ensure the stable operation of the system.
Adding a classic insulating sheet between the motherboard and the chassis can better isolate the chassis and the motherboard, and can also better prevent static electricity from interfering with the motherboard.

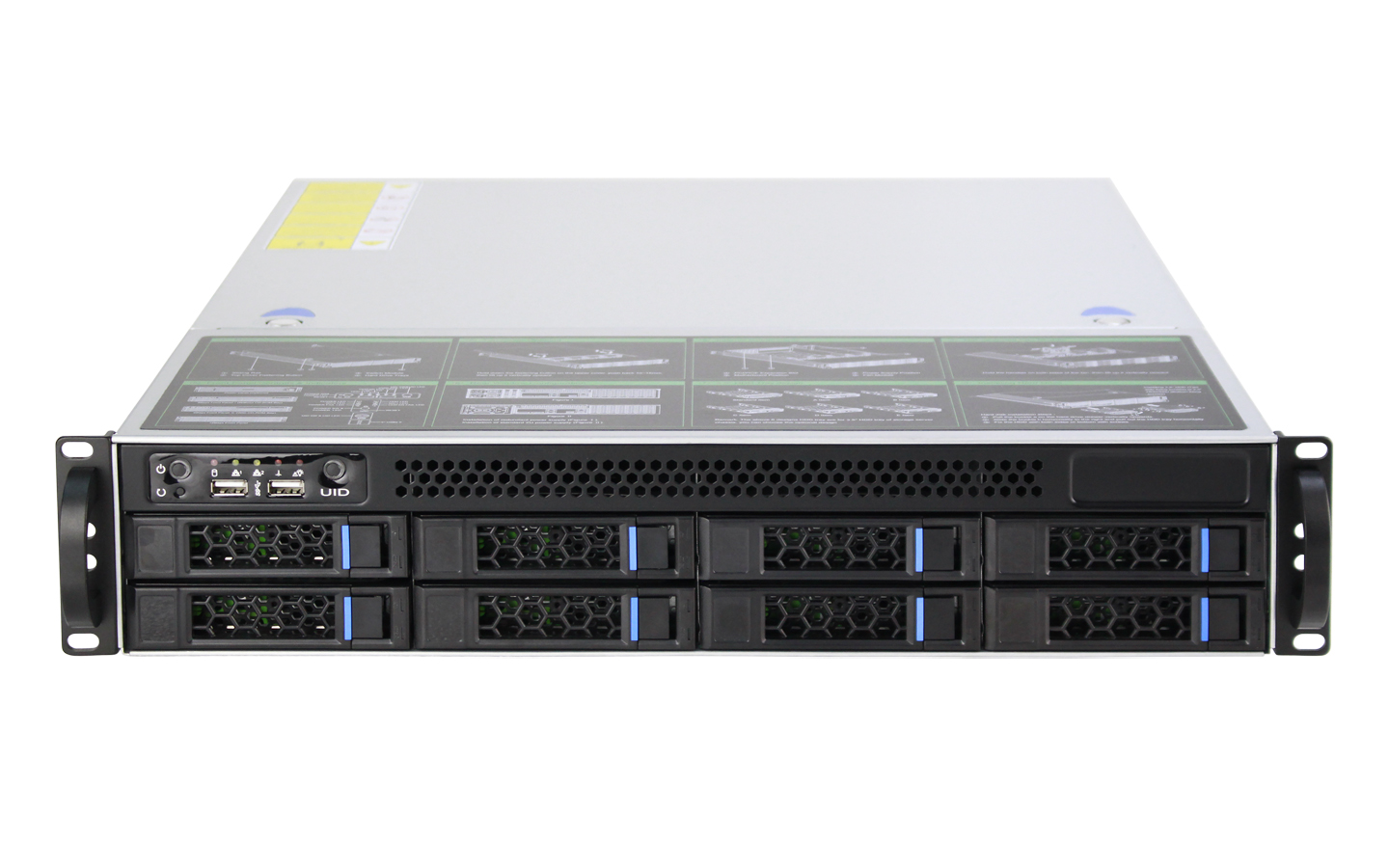

Front Panel
There are 8pcs 3.5/2.5 inches hot swapable hdd trays on the front panel of S265-08 M12 server case, and the hdd backplane is compatible with 4pcs NVME SSD. 2*2.0 usd connectors on the front.

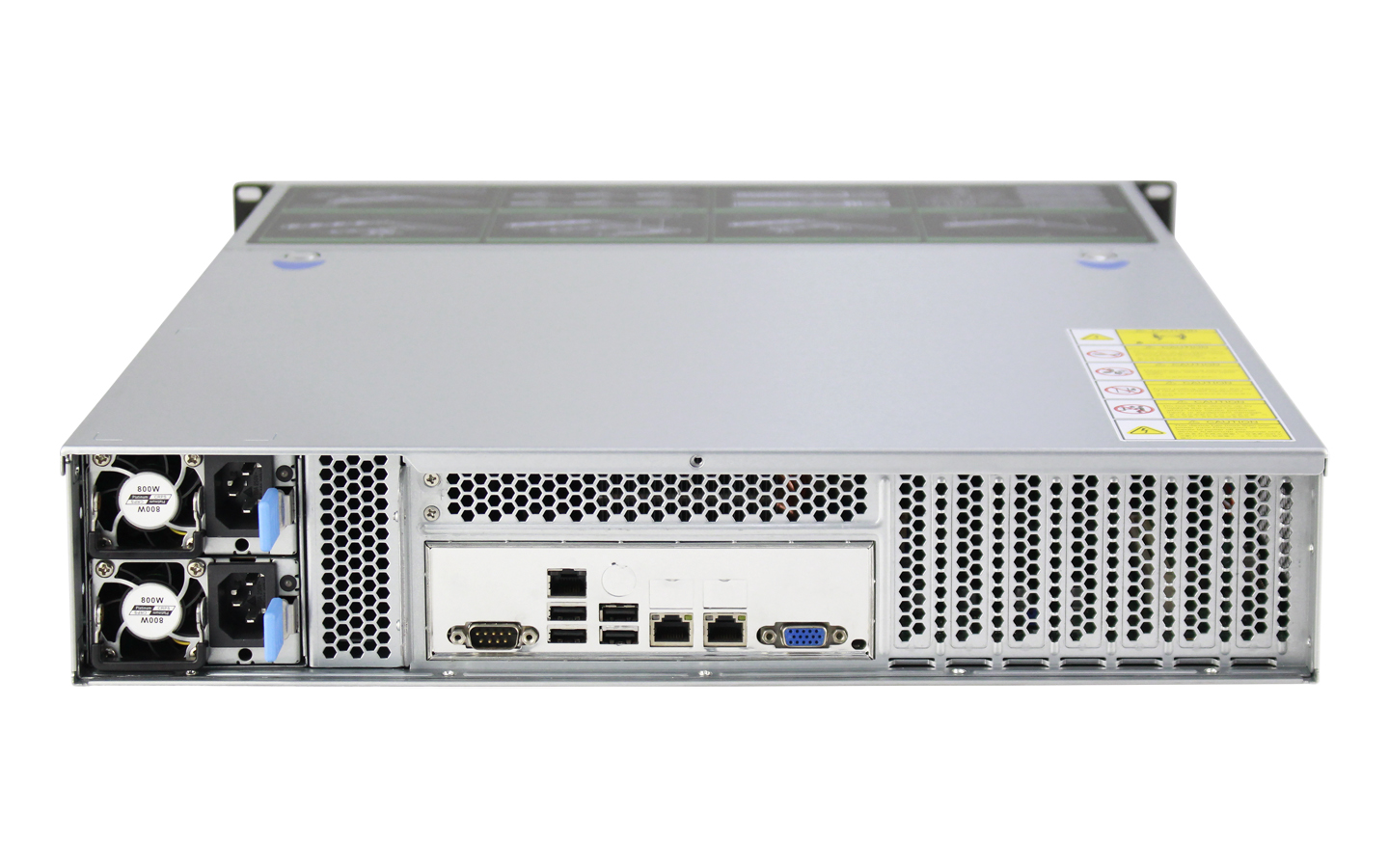

Back window
We have good designs for back window.if you want to mount 2u redundant psu, the space nearby you can insert 2pcs 2.5inch ssd (hot swappable is optional.) If you choose 2u standard psu, pls remove the 2.5'' ssd position.

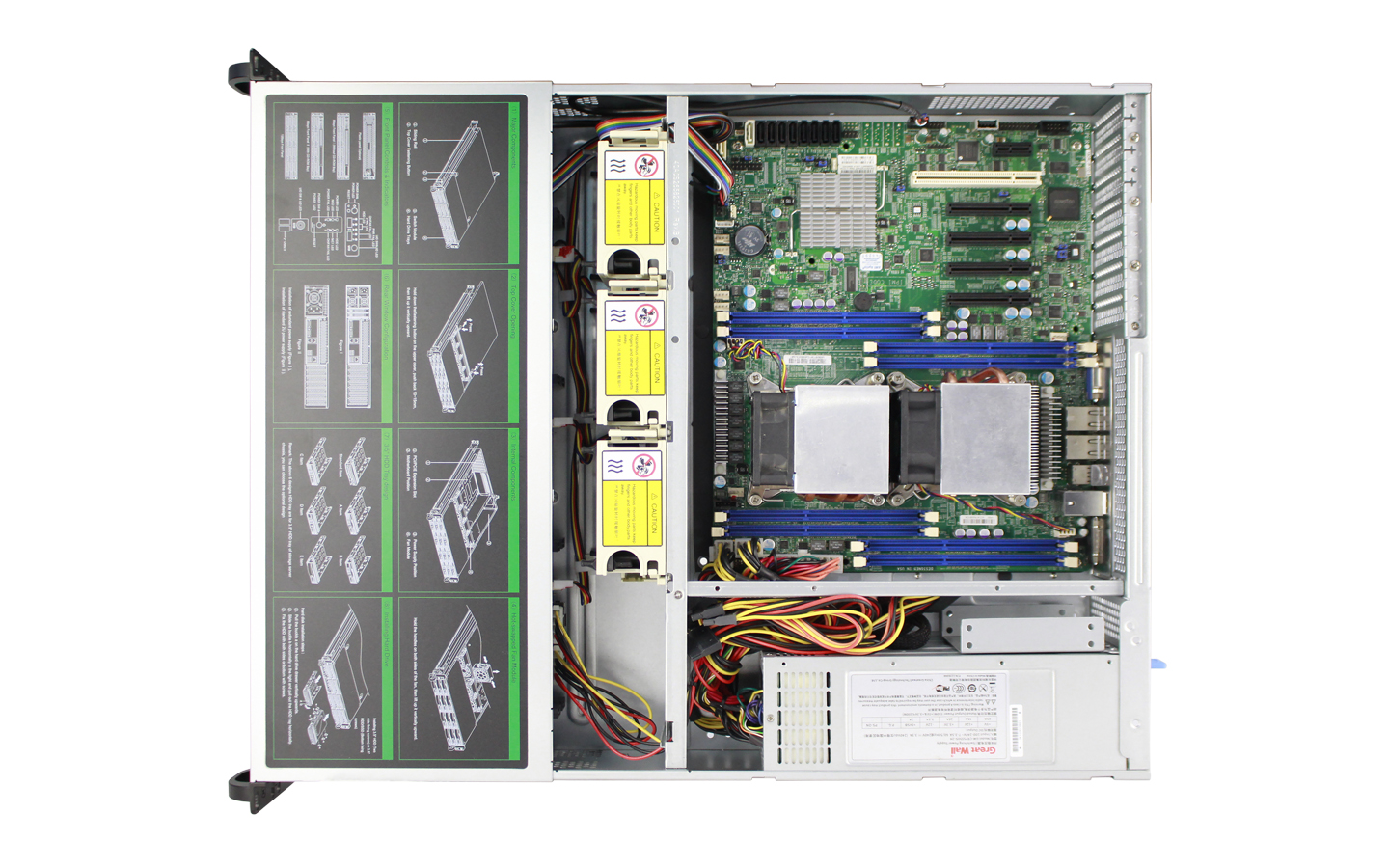

Motherboard support
Dimension of this server case is 437.5mm x 650mm x 88mm ,with enough capacity inside the chassis to install a motherboard with a size less than or equal to 12''*13''.

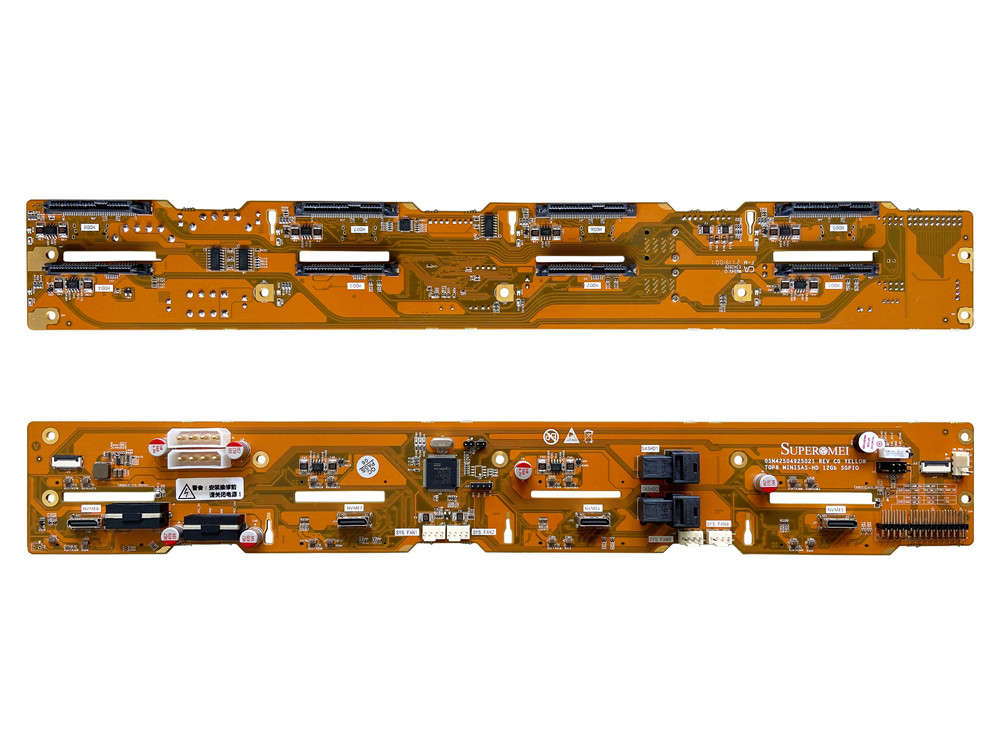

12gb/s SAS HD backplane with 4pcs nvme
The 8-bay 12Gb/s is directly connected to the hard disk backplane, and the PCB is processed with a 2.6mm-thick 10-layer board, which is stable and reliable, corrosion-resistant and anti-interference. Compatible with Sata/SAS/Nvme hard disks, support fan PWM intelligent speed regulation, SGPIO function, hard disk time-sharing startup, support hard disk short circuit protection and other functions. The backplane is powered by 2 square 8Pin and 3 large 4Pin ports, which is stable and reliable. The electronic components of this backplane are mostly imported materials, and the connectors are made of Amphenol, Molex and other brands, which are stable and reliable.
Specification
| item |
value |
| Private Mold |
Yes |
| Products Status |
Stock |
| Application |
Server |
| Type |
Rack |
| Form Factor |
ATX |
| Material |
Steel |
| Style |
With Fan, With Side Panel Window |
| Front Ports |
usb |
| Brand Name |
OEM |
| Place of Origin |
China |
| |
Guangdong |
| Dimensions ( W x D x H ) |
437.5mm x 650mm x 88mm |
| Material |
SGCC, 1.0mm SGCC Zinc-coated steel |
| HDD Bay |
8x3.5'' drive bay compatible with 4*nvme ssd bay, 2x2.5'' drive bays |
| Cooling Fan |
4pcs 80mm hot-swap fan position |
| Suitable M/B |
Max support 13x13.68'' |
| Form Factor |
ATX |
| Style |
With Fan, With Side Panel Window |
| HDD Tray |
Anti-EMI design, Compatible with 2.5''/3.5'' HDD |
| Power Supply |
2U standard power supply or redundant power supply |
| PCI/PCIE SLOTS |
7 half height expansion slots |
