Toploong OED/ODM 2U 12bays hot swap storage server chassis 19 inch rackmount enterprise cloud storage server case enclosure

Quick Details
Product Code:
S265-12
OEM:
Available
Sample:
Available
Port:
ShenZhen
Payment:
T/T
Place of Origin:
China
Shipping:
Support Express · Sea freight · Air freight
Supply Ability:
1000 piece per day
Quick Details
  • Port
    Shenzhen
  • Power supply
    Standard 2U power supply or redundant power supply
  • Place of Origin
    Guangdong,China
  • Expansion space
    7 PCI/PCIE expansion slot
  • Fan
    4*80 fans position,standard with 3pcs 8025 fans
  • Front USB ports
    2xUSB2.0 ports
  • HDD Bays
    Support 12*3.5" hot-swap HDD bays,2*2.5" drive bay
  • Material
    SGCC 1.0mm Zinc-coated steel
  • Motherboard support
    Support MAX 12"X13" motherboard
  • Type
    Rack
  • Form Factor
    ATX motherboard
  • Products Status
    Stock
  • Dimension(D*W*H)
    650MM*437.5MM*88MM
  • Packaging Detail
    PE bag inside and carton packing outside
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier
Product Specification:

item

S265-12 E12
S265-12 E06
S265-12 M12
S265-12 M06
Type
Rack
Rack
Rack
Rack
Front USB ports:
2xUSB2.0 ports
2xUSB2.0 ports
2xUSB2.0 ports
2xUSB2.0 ports
Motherboard support:
MAX 12"X13" motherboard
MAX 12"X13" motherboard
MAX 12"X13" motherboard
MAX 12"X13" motherboard
HDD Bays:
12*3.5"+2*2.5" HDD drive bay
12*3.5"+2*2.5" HDD drive bay
12*3.5"+2*2.5" HDD drive bay
12*3.5"+2*2.5" HDD drive bay
HDD Backplane:
12GB/S Expansion
6GB/S Expansion


Material
SGCC 1.0mm Zinc-coated steel
SGCC 1.0mm Zinc-coated steel
SGCC 1.0mm Zinc-coated steel
SGCC 1.0mm Zinc-coated steel
Power supply:
2U or redundant power supply
2U or redundant power supply
2U or redundant power supply
2U or redundant power supply
Fan:
3pcs 80MM fans
3pcs 80MM fans
3pcs 80MM fans
3pcs 80MM fans
Dimension(D*W*H):
650MM*437.5MM*88MM
650MM*437.5MM*88MM
650MM*437.5MM*88MM
650MM*437.5MM*88MM
Color:
Black(Optional)
Black(Optional)
Black(Optional)
Black(Optional)
Expansion space:
7 PCI/PCIE expansion slot
7 PCI/PCIE expansion slot
7 PCI/PCIE expansion slot
7 PCI/PCIE expansion slot

Product Description:

Product Description:

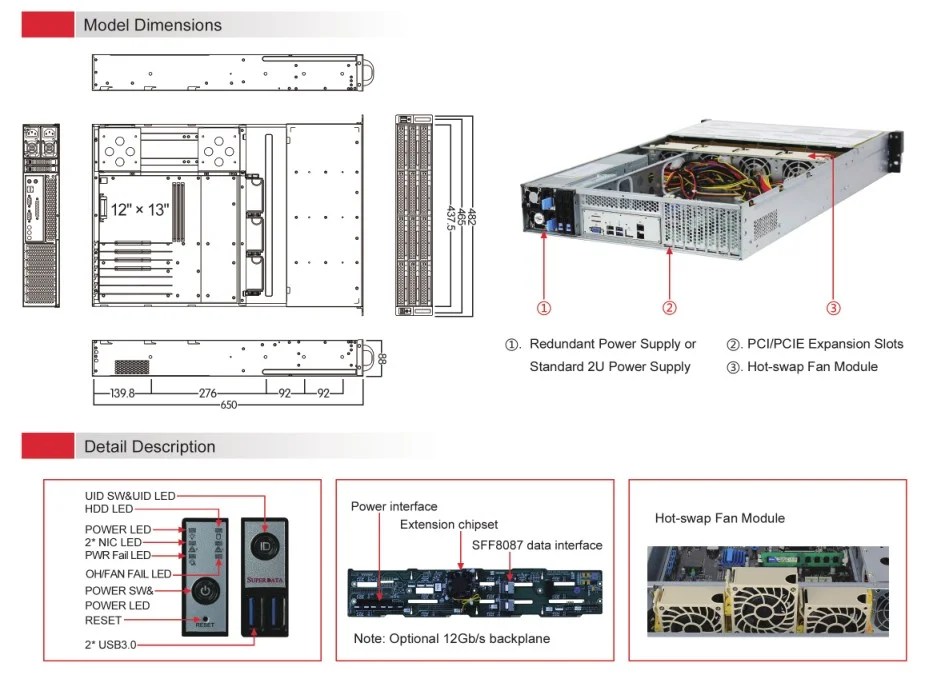

This S265-12 computer case is made of high-quality environmentally protection 1.0mm SGCC  materials, anti-fingerprint, corrosion-resistant, in line with EMC design standards, and has excellent anti-electromagnetic interference and anti-radiation capabilities.
    There is enough capacity inside the chassis to install a motherboard with a size less than or equal to 12''*13'', and there are 12 3.5-inch hot-swap hard drives compatible with 2.5-inch hard drives. The buckle design on the hard disk box can make the hard disk lock more firmly and prevent the hard disk from loosening. The chassis supports standard 1U, 2U power supplies and redundant power supplies.
     This computer case has a good cooling system and comes standard with 3 8038 hot-swappable ball fans, which can form a good cooling air duct inside the case to ensure the stable operation of the system.
     Adding a classic insulating sheet between the motherboard and the chassis can better isolate the chassis and the motherboard, and can also better prevent static electricity from interfering with the motherboard.
     The S265-12 M06 chassis standard comes with a 6GB/S data channel HDD backplane. This backplane is compatible with SATA and SAS hard disks, with PWM fan speed regulation and SGPIO function, supports backplane expansion, and has a time-sharing startup function for hard disks.

    The S265-12 M12 chassis standard comes with a 12GB/S data channel HDD backplane. This backplane is compatible with SATA and SAS hard disks, with PWM fan speed regulation and SGPIO function, with temperature control chipset,supports backplane expansion, and has a time-sharing startup function for hard disks.

    The S265-12 E06 chassis standard comes with a 6GB/S data channel HDD backplane. This backplane is compatible with SATA and SAS hard disks, with PWM fan speed regulation and SGPIO function, with temperature control chipset,supports backplane expansion, and has a time-sharing startup function for hard disks.

    The S265-12 E06 chassis standard comes with a 6GB/S data channel HDD backplane. This backplane is compatible with SATA and SAS hard disks, with PWM fan speed regulation and SGPIO function, with temperature control chipset,supports backplane expansion, and has a time-sharing startup function for hard disks.

Company Profile:

Shenzhen Toploong Technology Co., Ltd. was founded in 2000. With professional designers, advanced equipment and reliable products, our company becomes a professional high technology enterprise engaged in exploiting, producing and selling IT products. All of us have been devoted to exploiting and producing industrial server cases and kinds of nonstandard cases for many years. We can design a variety of IPC, hot-swap series, 1U server series, etc. and have successfully pushed the industrial automatic control industry forward, bringing many good favorable products and decreasing the cost largely for consumers. Now, our products are extensively applied in network, monitoring & control, security & production, broadcast & television, electric power, instrument, etc. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for internet servers (website/E-mail/firewall/VPN/storage), network game servers (DB/Game/Gate/Log-in/Web/SQL), high-tech servers (NAS and SAN) and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. Our major products include 19" server case, industrial computer case, network case, rackmount chassis, nonstandard cabinet, and kinds of operating cabinets, which are steady and reliable. We cooperate closely with leading power supply manufacturers, such as: Zippy, Enhance, and Huntkey. We advocate the advanced culture, pursue advanced management administration and talent philosophy, set up united and harmonious viewpoints and honest and faithful ethics, strengthen the construction of material civilization and spirit civilization, strengthen the cohesive force of the staff inside, set up a good image of our enterprise outside and strengthen the core competency of our company constantly. Our slogan is: Choosing us means that you have managed a fabricating factory! We sincerely welcome you to contact us for future business relationships and achieving mutual success! We are looking forward to the future. We are full of confidence because we believe our company will make progress day by day with your support and cooperation.

Certifications:

FAQ:

1. who are we?

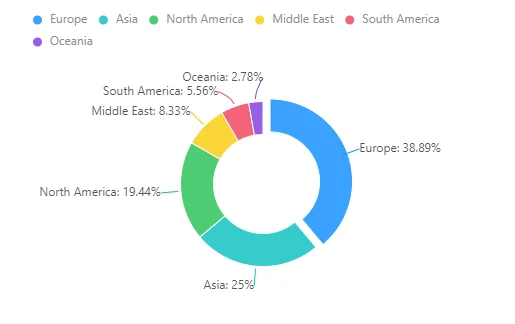

We are based in Guangdong, China, start from 2010,sell to Northern Europe(38.89%),North America(19.44%),Asia(25%),Mid East(8.33%),South America(5.56%),Oceania(2.78%),. There are total about 401-499 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Rackmount server case,Hotswap Server case,IPC server case,rackmount servers chassis,server case

4. why should you buy from us not from other suppliers?
Shenzhen Toploong Technology Co.,Ltd was founded in 2000 and engaged in designing,developing,producing and selling IPC&Server chassis.It is the leading company in the China rackmount chassis industry and certificated with ISO9001:2008.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German


Packing&Shipping:

Each item was well packed before shipping.We use pearl cotton and inner box and corner guard and outer box to protect your chassis.

Price on display is for goods only not including shipping cost.

Pls contact seller ablout shipping quotation before your order.
