Toploong M265-25 2u 25 bays server case with 4pcs nvme ports expander backplane-copy

Quick Details
Product Code:
M265-25
OEM:
Available
Sample:
Available
Port:
ShenZhen
Payment:
T/T
Place of Origin:
China
Shipping:
Support Express · Sea freight · Air freight
Supply Ability:
1000 piece per day
Quick Details
  • USB
    USB3.0 x 2
  • Material
    SGCC,1.0mm SGCC Zinc-coated steel
  • Dimensions ( W x D x H )
    437.5mm x 650mm x 88mm
  • Power Supply
    2U standard power supply or redundant power supply
  • Cooling Fan
    Standard price with 4pcs 80mm AVC ball bearing fans
  • Brand Name
    Costomize
  • Form Factor
    E-ATX
  • Type
    Rack
  • Products Status
    Stock
  • Suitable M/B
    Max support 12x13''
  • Style
    With Fan,With Side Panel Window
  • HDD Bay
    25*2.5" hot-swap HDD bays,built-in 2x2.5" drive bays
  • Application
    Server,cloud storage,big data
  • HDD Tray
    Anti-EMI design
  • Packaging Detail
    Double Carton with PE foam
  • Selling Units
    Single item
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier
Product Description

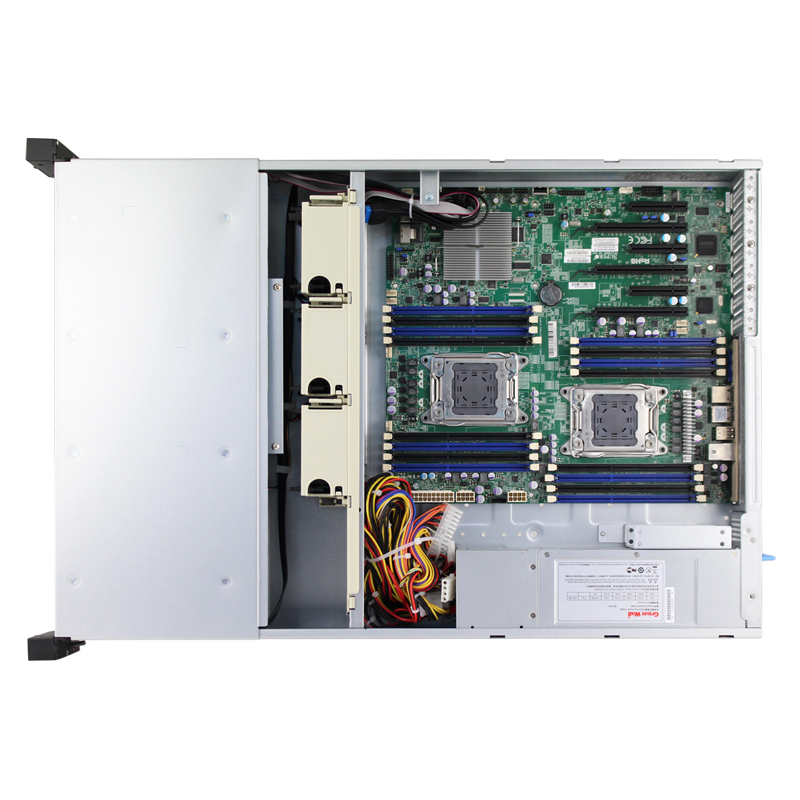

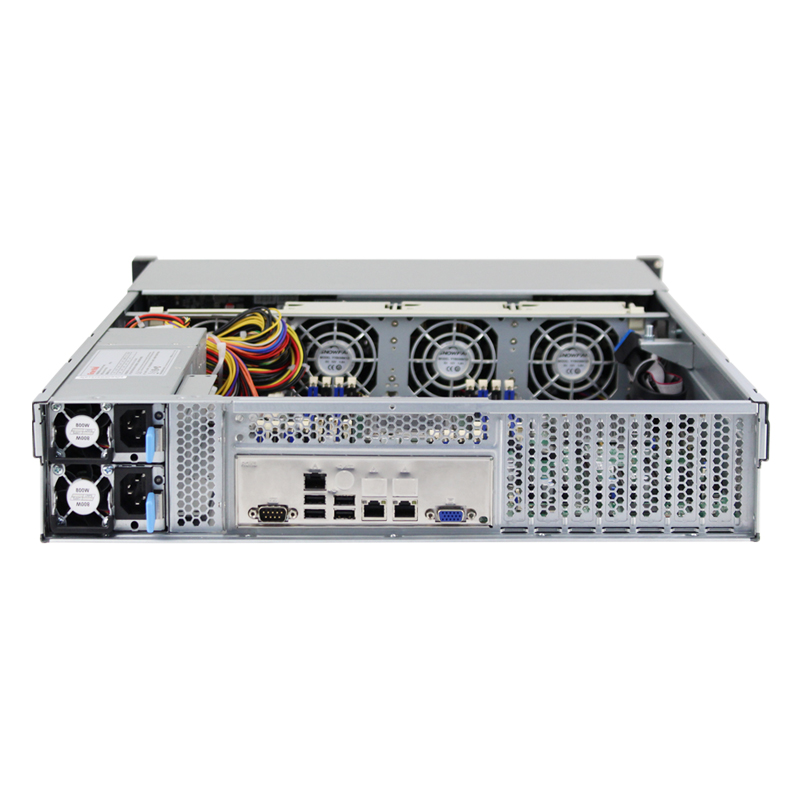

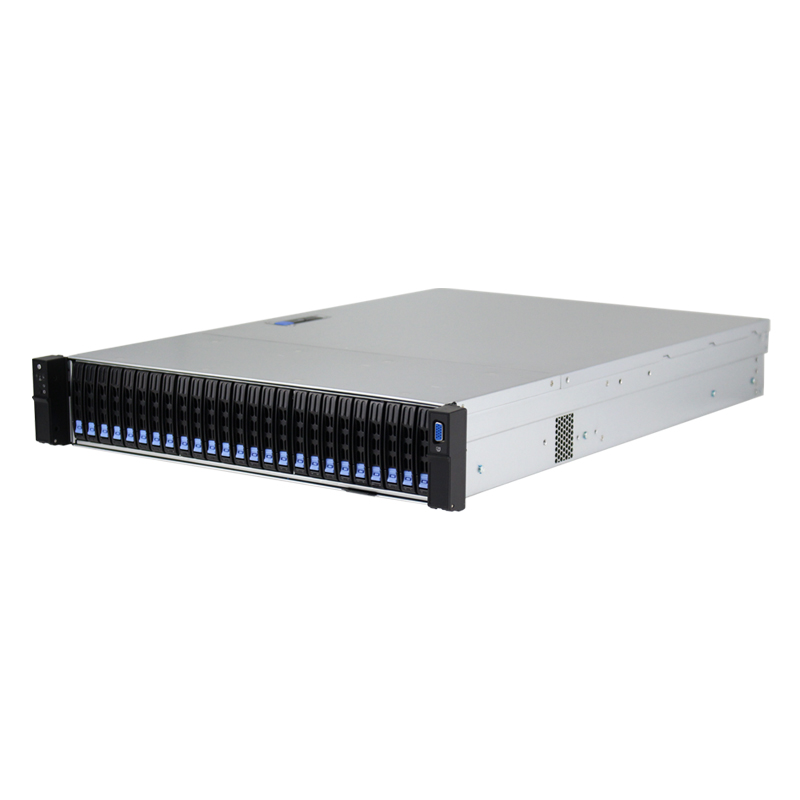

M265-25 SERVER CASE WITH EXPANDER BACKPLANE SUPPORT NVME

This 2u 25 bays server case supports 25pcs 2.5'' hdd drives and compatible with 4 pcs nvme connectors. On the rear window there are 2pcs build in 2.5'' ssd position.

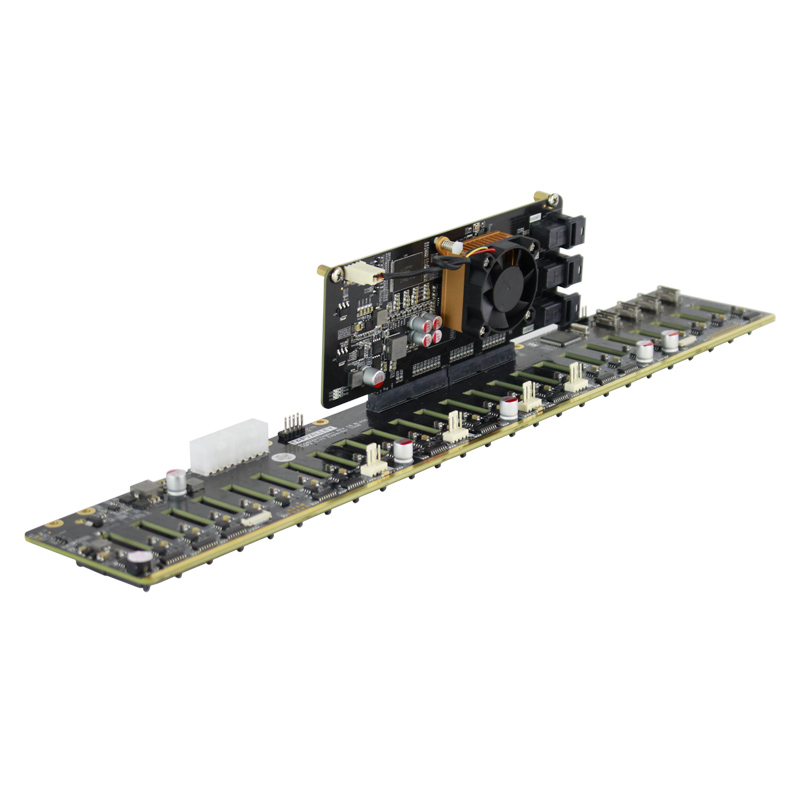

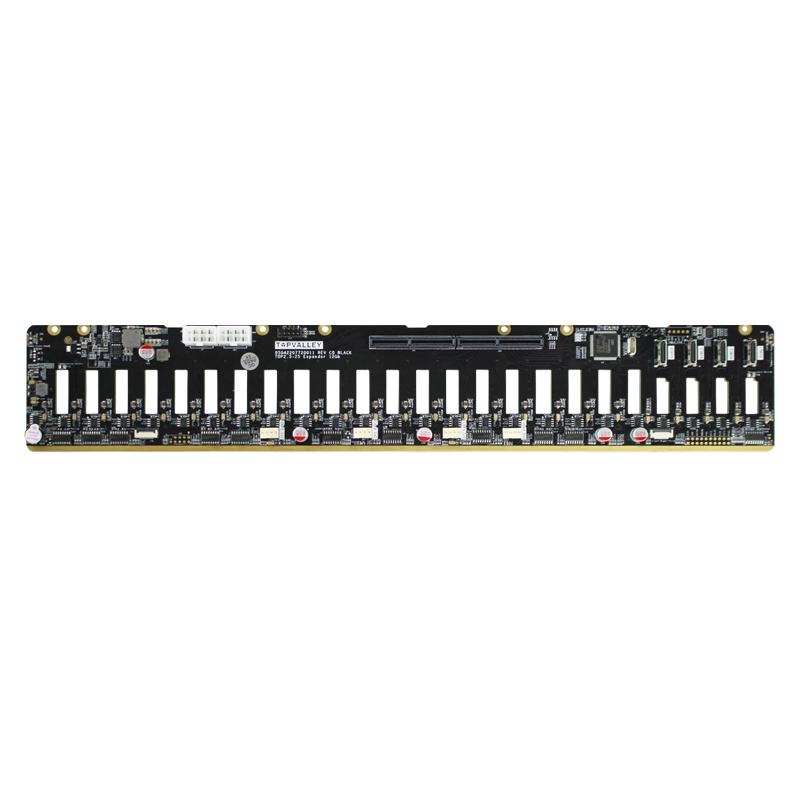

25bays 12GB/s expander backplane

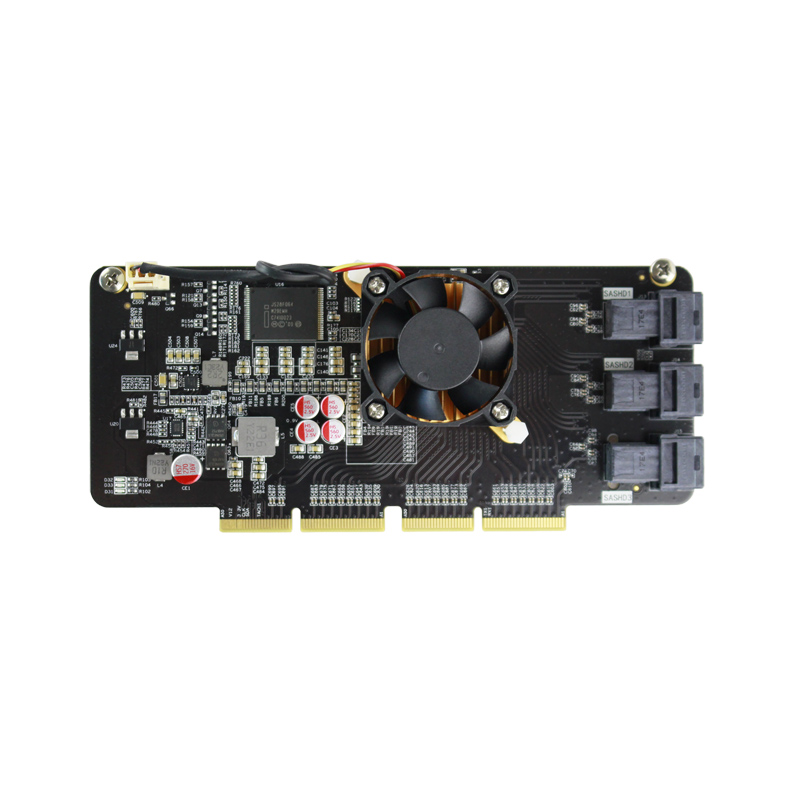

The high-speed 25-bay 12Gb/s expansion hard disk backplane PCB is made of a 2.6mm thick 10-layer board, which is durable and not easily deformed. The expansion chip adopts LSI 3X36R/35X36 chip, compatible with Sata/SAS hard disk, supports fan PWM intelligent speed regulation, SGPIO function, hard disk time-sharing start, Nvme hard disk, cold storage, JBOD cascade and other functions. The backplane uses 2 square 8Pin interfaces for power supply, and supports hard disk short circuit protection. The electronic components of the extended backplane adopt imported solid capacitors, and the backplane connection components adopt brand connectors such as Amphenol and Molex, which are stable and reliable.
Specification
item
value
Products Status
Stock
Application
Server
Type
Rack
Form Factor
ATX
Material
Steel
Style
With Fan
Front Ports
usb
Brand Name
OEM
Place of Origin
China

Guangdong
Form Factor:
ATX motherboard
Front USB ports:
2xUSB3.0 ports
Motherboard support:
Support MAX 12"X13" motherboard
HDD Bays:
25*2.5" hot-swap HDD bays,built-in 2x2.5" drive bays
Materail:
SGCC 1.0mm Zinc-coated steel
Power supply:
Standard 2U power supply or redundant power supply
Fan:
Standard price with 4pcs 80mm AVC ball bearing fans
Dimension(D*W*H):
650MM*437.5MM*88MM
Color:
Black(Optional)
Expansion space:
7 PCI/PCIE expansion slot
Packing & Delivery
PE bag inside and carton packing outside
Company Profile

00:00

01:41

Shenzhen Toploong Technology Co., Ltd. was founded in 2000. With professional designers, advanced equipment and reliable products, our company becomes a professional high technology enterprise engaged in exploiting, producing and selling IT products. All of us have been devoted to exploiting and producing industrial server cases and kinds of nonstandard cases for many years. We can design a variety of IPC, hot-swap series, 1U server series, etc. and have successfully pushed the industrial automatic control industry forward, bringing many good favorable products and decreasing the cost largely for consumers. Now, our products are extensively applied in network, monitoring & control, security & production, broadcast & television, electric power, instrument, etc. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for internet servers (website/E-mail/firewall/VPN/storage), network game servers (DB/Game/Gate/Log-in/Web/SQL), high-tech servers (NAS and SAN) and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. Our major products include 19" server case, industrial computer case, network case, rackmount chassis, nonstandard cabinet, and kinds of operating cabinets, which are steady and reliable. We cooperate closely with leading power supply manufacturers, such as: Zippy, Enhance, and Huntkey. We advocate the advanced culture, pursue advanced management administration and talent philosophy, set up united and harmonious viewpoints and honest and faithful ethics, strengthen the construction of material civilization and spirit civilization, strengthen the cohesive force of the staff inside, set up a good image of our enterprise outside and strengthen the core competency of our company constantly. Our slogan is: Choosing us means that you have managed a fabricating factory! We sincerely welcome you to contact us for future business relationships and achieving mutual success! We are looking forward to the future. We are full of confidence because we believe our company will make progress day by day with your support and cooperation.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Northern Europe(9.09%),Central America(9.09%),Western Europe(9.09%),Eastern Asia(9.09%),Mid East(9.09%),Africa(9.09%),Southeast Asia(9.09%),Eastern Europe(9.09%),South America(9.09%),North America(9.09%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Rackmount server case,Hotswap Server case,IPC server case,rackmount servers chassis,server case

4. why should you buy from us not from other suppliers?
Shenzhen Toploong Technology Co.,Ltd was founded in 2000 and engaged in designing,developing,producing and selling IPC&Server chassis.It is the leading company in the China rackmount chassis industry and certificated with ISO9001:2008.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German
