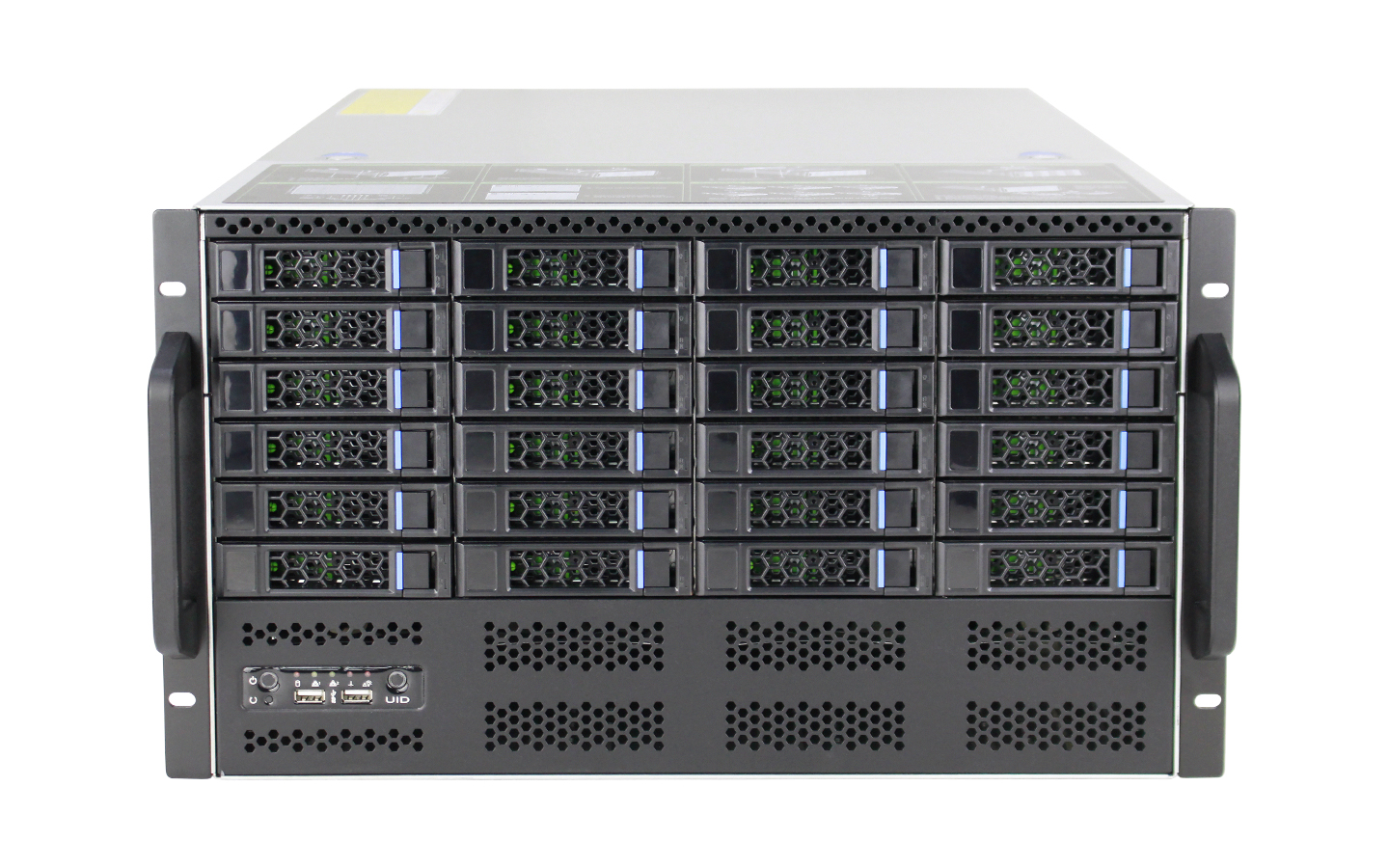

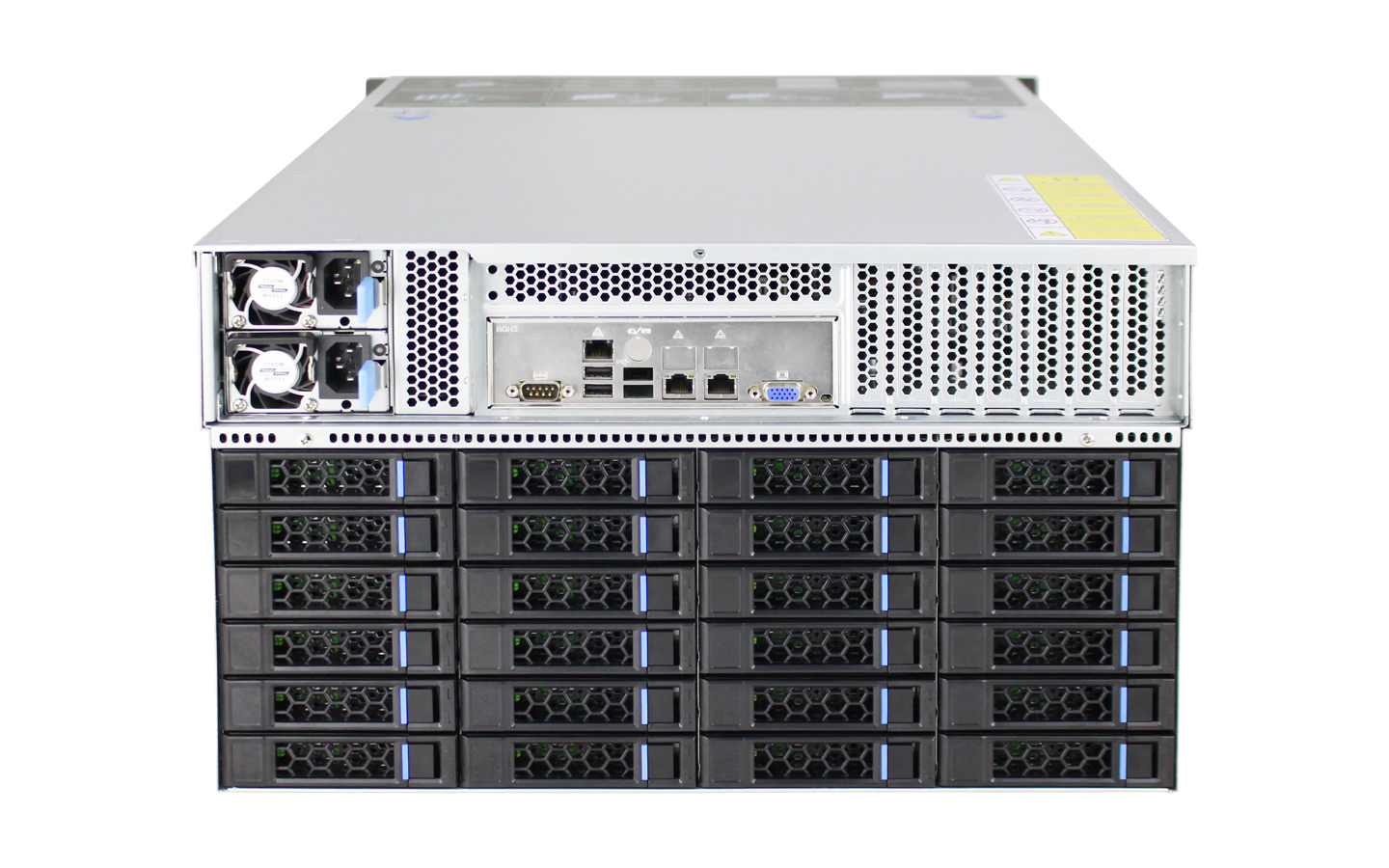

Toploong 6U 48 Bay Hot-swap storage Server Case Empty Server Chassis With 12GB/S OR 6Gb/s expander backplane
Quick Details
Product Code：
S665-48
OEM：
Available
Sample:
Refuse
Port:
ShenZhen
Payment:
T/T
Place of Origin：
China
Shipping：
Support Express · Sea freight · Air freight
Supply Ability：
1000 piece per day
Quick Details
- Backplane12Gb/s OR 6Gb/s expander backplane
- Dimensions437.5mm x 650mm x 265mm (W*D*H)
- MaterialAluminum Alloy,1.0mm SGCC Zinc-Coated Steel
- CertificationAccording to customer request
- Front Ports2*USB3.0
- Power SupplyCRPS
- Brand NameToploong
- Cooling Fan6pcs 12038 hot-swap fans
- Form FactorE-ATX
- TypeRack
- SwitchPower ON/OFF x 1, System reset x 1, UID Switch x 1, USB3.0 x 2
- MotherboardMax support 12''x13''(E-ATX) motherboard
- StyleWith Fan,With Side Panel Window
- HDD Bay60 x 3.5' hot-swap SATA/SAS drive bays+built-in 2x2.5'' drive bays
- ApplicationServer
- HDD Tray2.5''/3.5'' HDD(Anti-EMI)
- Packaging DetailCarton box with PE foam Size
Shipping fee
Shipping fee
Product Description:
This 6U 48bays Hot-swappable storage server chassis is made of high quality imported steel, which is environmental protection and fingerprint resistant 1.0MM SGCC. It has 48 disks high-density storage directly connects to LSI 6Gb /S Expansion backplane OR 12Gb /S Expansion backplane.
The special backplane is compatible with Sata/SAS hard disks, support fan PWM intelligent speed regulation, SGPIO function, hard disk time-sharing startup, Nvme hard disk, cold storage, JBOD cascade, hot swap fans, etc. The PSU position compatible with CRPS redundant power supply and standard 2u single PSU.
The special backplane is compatible with Sata/SAS hard disks, support fan PWM intelligent speed regulation, SGPIO function, hard disk time-sharing startup, Nvme hard disk, cold storage, JBOD cascade, hot swap fans, etc. The PSU position compatible with CRPS redundant power supply and standard 2u single PSU.
Specification:
|
item
|
value
|
|
Application
|
Server
|
|
Type
|
Rack Mounted
|
|
Form Factor
|
ATX
|
|
Material
|
Aluminum Alloy, Steel
|
|
Style
|
With Fan
|
|
Dimension
|
650mm(D) * 437.5mm(W) * 265mm(H)
|
|
Material
|
1.0mm SGCC Zinc-Coated Steel
|
|
HDD Bay
|
48 * 3.5'' hot-swap SATA/SAS drive bay, built-in 2*2.5'' drive bays
|
|
HDD Tray
|
Anti-EMI design, Compatible with 2.5''/3.5'' HDD
|
|
Cooling Fan
|
6X12038 hot-swap fans.
|
|
Expansion Space
|
7 half-height PCI/PCIE expansion slots.
|
|
HDD Backplane
|
6Gb/s backplane(Optional 12Gb/s)
|
|
Suitable M/B
|
Max Support 13*13.68''
|
|
Suitable PSU
|
2U standard power supply or redundant power supply
|
|
Applications
|
Cloud storage, cloud computing, security monitoring, etc
|
Packing & Delivery:
Each item was well packed before shipping.We use pearl cotton and inner box and corner guard and outer box to protect your chassis.
Price on display is for goods only not including shipping cost.
Pls contact seller ablout shipping quotation before your order.
Double Carton with PE foam
