High performance AI Server Case 4U 10 Gpu Rack mount Supports A100 4090 4+1 CRPS PSU For Deep Learning AI Training Server

Quick Details
Product Code:
G4830-P4
OEM:
Available
Sample:
Available
Port:
ShenZhen
Payment:
T/T
Place of Origin:
China
Supply Ability:
1000 piece per day
Quick Details
  • Motherboard Compatibility
    ATX,E-ATX,EE-ATX
  • Dimension(D*W*H)
    438mm x 830mm x 176mm
  • Material
    1.2MM SGCC Steel
  • PSU support
    4+1 CRPS psu module
  • Front Ports
    AUDIO,ESATA,usb
  • Brand Name
    Toploong
  • Cooling Fan
    3pcs 120mm fans,3*80mm fans and 2*60mm fans
  • Packaging Detail
    carton
  • USB
    Front 2*3.0usb
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier
Product Description

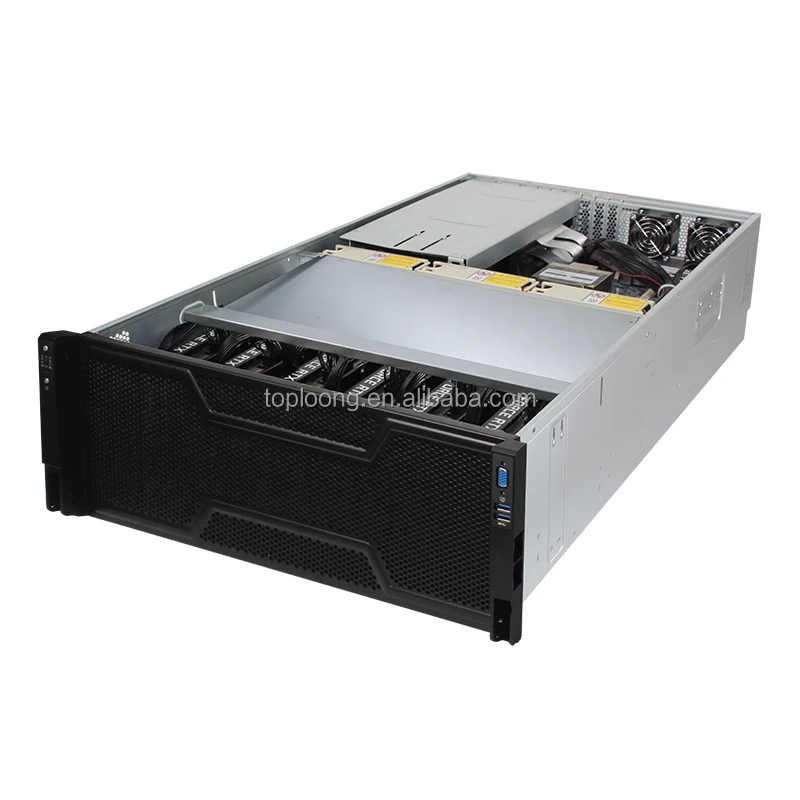

This 10-GPU server supports up to 10 single-width GPU cards in a 4U-height chassis. It has two built-in 2.5-inch hard drive bays and 8 cooling fans. It supports platforms of different specifications and GPUs of different sizes. In terms of computing performance, expansion capabilities, temperature control, It shows extraordinary strength in terms of stability and can best meet the development and application of emerging fields such as artificial intelligence. It is suitable for HPC, big data analysis, 3D graphics applications, video decoding, deep learning, scientific computing and other application scenarios.


Features: 1. Support PCIE channels of different specifications, support PCIE4.0, compatible with PCIE3.0 (PCIe x16/x8/x4) 2. Extraordinary GPU density support, supporting up to 10 single-wide public version GPUs 3. Good heat dissipation design, equipped with 8 cooling fans, good heat dissipation control 4. Flexible platform matching to cope with different application scenarios (Intel/AMD, GPUs of different sizes) 5. Stable power supply design, supports 5 standard CRPS power modules, adopts 4+1 power supply mode, stable and reliable



4+1 power module, the redundancy mode is CRPS module adaptive mode. When used with a 5-power module backplane, if you insert five 800W power modules and the power consumption of the whole machine is less than 2400W, then it is 3+2 redundancy; if the power consumption of the whole machine is between 2400-3200W, then it is 4+ 1 Redundant mode, if the power consumption of the whole machine is more than 3200W, 5 modules will be used together. No matter what kind of power supply, the power supply application should follow the 2 8 rule. For a 1000W power supply, it is best to use no more than 800W, leaving 200W for sudden or loss power consumption.


Packing


item

Qty

server enclosure

one piece

Cooling Fan

3x 120mm Fans+3*80mmfans+2*60mm fans

gpu extension cable

6pcs

Accessories Box

one piece
