Toploong 4u 12 Bay Hot Swap 8 9 Gpu Cards Ai Rack Server Platform For Chatgpt Edge Computing Server Chassis Case Enclosure
Quick Details
Product Code：
G478-9C
OEM：
Available
Sample:
Available
Port:
ShenZhen
Payment:
T/T
Place of Origin：
China
Supply Ability：
1000 piece per day
Quick Details
- Motherboard CompatibilityATX
- Dimension(D*W*H)438mm x 780mm x 177mm
- Material1.2MM SGCC Steel
- PSU support3+1 CRPS psu module
- Front PortsAUDIO,ESATA,usb
- Brand NameToploong
- Cooling Fan3*12038B,optional 4pcs 80mm fans on the front panel
- hdd Drive Bays12*3.5''/2.5'' hdd drive bays
- StyleWith Fan
- Packaging Detailcarton
- Selling UnitsSingle item
Shipping fee
Shipping fee
Specification
This is Toploong brand new graphics server platform.Supports server motherboards of Intel and AMD platforms, and supports motherboards up to 12"*13" .The backplane supports 8 or 9 cards.The online quotation includes chassis, backplane, switch cards and SFF8654-SFF8654 cables.
What are the application scenarios of graphics card servers? GPU servers are generally used in AI, edge computing, games and other fields. When we generally deal with big data, such as when our operation and maintenance needs big data analysis, we will use graphics card servers, including our online processing of video encoding, especially video rendering, game hang-up and other operations.
|
Model No.
|
G478-9C
|
|
Dimensions ( W x D x H )
|
437.5mm x 780mm x 176.5mm
|
|
M/B Form Factor
|
support max 12”x13” motherboard
|
|
Power Supply support:
|
3+1 CRPS power supply module
|
|
Cooling Fan
|
3 x 120mm on the middle wall
|
|
Packaging
|
Double carton with EPE foam
|
Details Images
Key features of 9 cards GPU server platform

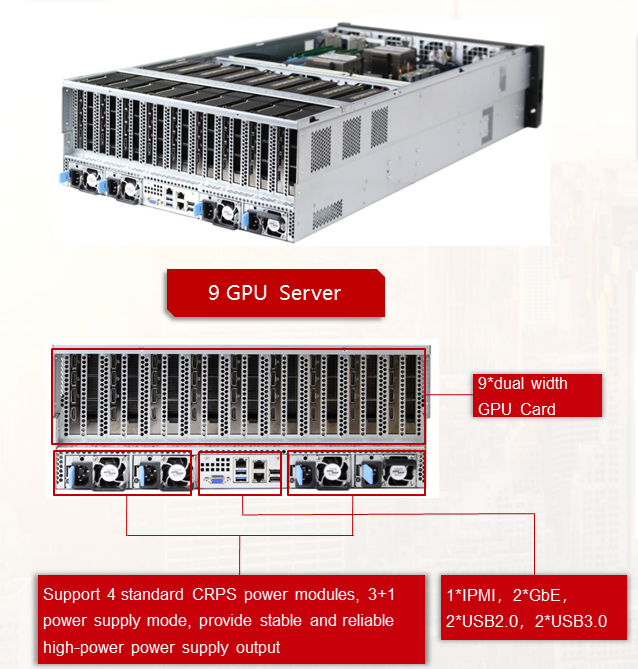

1. Standard rack structure, 4U height, 780mm depth. 2. With an excellent heat dissipation system, the full-load temperature of the graphics card does not exceed 83°C 3. Support motherboards with a size of 12”x13” and below, and support Intel and AMD platforms 4. Support 8 or 9 game graphics cards, support 2080Ti/3060/3070/3080/3090 5. Support 4 standard CRPS power modules, 3+1 power supply mode, provide stable and reliable high-power power supply output
Powerful Backplane

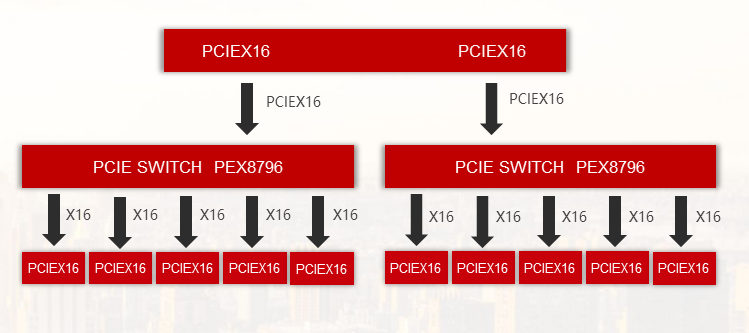

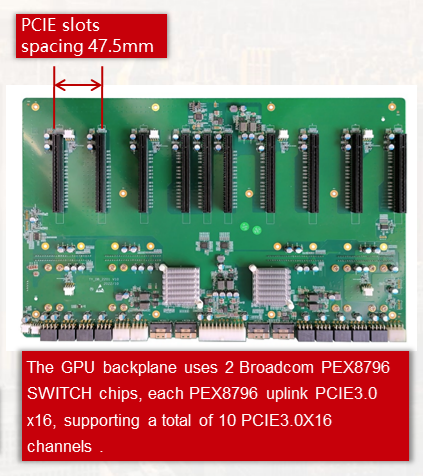

The GPU backplane uses 2 Broadcom PEX8796 SWITCH chips, each PEX8796 uplink PCIE3.0 x16, supporting a total of 10 PCIE3.0X16 channels .

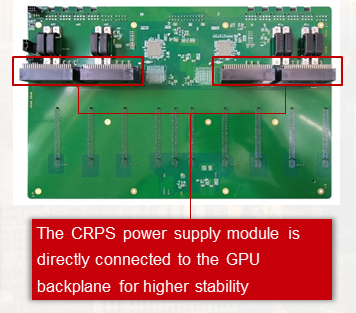

The CRPS power supply module is directly connected to the GPU backplane for higher stability

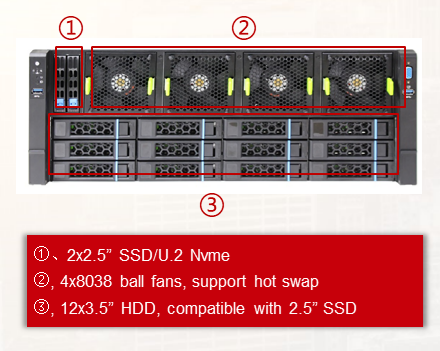

①、2x2.5” SSD/U.2 Nvme
②, 4x8038 ball fans, support hot swap
③, 12x3.5” HDD, compatible with 2.5” SSD
②, 4x8038 ball fans, support hot swap
③, 12x3.5” HDD, compatible with 2.5” SSD
