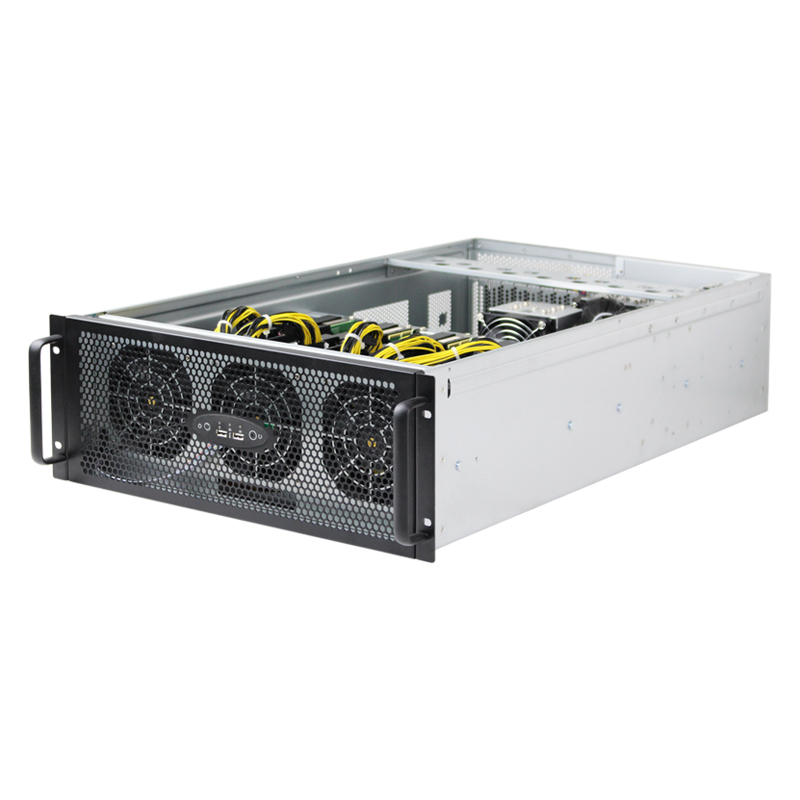

Ai Server Platform Rack Mount 5 6 Gpu Server Case Supports Universal Motherboard For Chatgpt Edge Computing Gaming
Quick Details
Product Code：
G478-6C
OEM：
Available
Sample:
Available
Port:
ShenZhen
Payment:
T/T
Place of Origin：
China
Supply Ability：
1000 piece per day
Quick Details
- Motherboard CompatibilityATX
- Dimension(D*W*H)438mm x 780mm x 177mm
- Material1.2MM SGCC Steel
- PSU support3+1 CRPS psu module
- Front PortsAUDIO,ESATA,usb
- Brand NameToploong
- Cooling Fan3*12038B,optional 4pcs 80mm fans on the front panel
- StyleWith Fan
- Packaging Detailcarton
- Selling UnitsSingle item
Shipping fee
Shipping fee
Specification
This is Toploong brand new graphics server platform. The online quotation includes chassis, backplane, switch cards and SFF8654-SFF8654 cables.
Standard quotation not including motherboard , cpu,GPU cards and power supply. These parts are optional. If you need motherboard and psu pls contact me.
What are the application scenarios of graphics card servers? GPU servers are generally used in AI, edge computing, games and other fields. When we generally deal with big data, such as when our operation and maintenance needs big data analysis, we will use graphics card servers, including our online processing of video encoding, especially video rendering, game hang-up and other operations.
|
Model No.
|
G478-6C
|
|
Dimensions ( W x D x H )
|
437.5mm x 780mm x 176.5mm
|
|
M/B Form Factor
|
support max 15.2”x13.2” motherboard
|
|
Power Supply support:
|
CRPS power supply+PSU Backplane
|
|
Cooling Fan
|
3 x 120mm on the front+2*8038mm fans on rear window
|
|
Packaging
|
Double carton with EPE foam
|
Details Images
Key features of 6 cards GPU server platform
1. Standard rack structure, 4U height, 780mm depth. 2. With an excellent heat dissipation system, the full-load temperature of the graphics card does not exceed 83°C 3. Support motherboards with a size of 15.2”x13.2” and below, and support Intel and AMD platforms 4. Support 5 or 6 game graphics cards, support 2080Ti/3060/3070/3080/3090 5. The maximum power of the power board can support 3000W

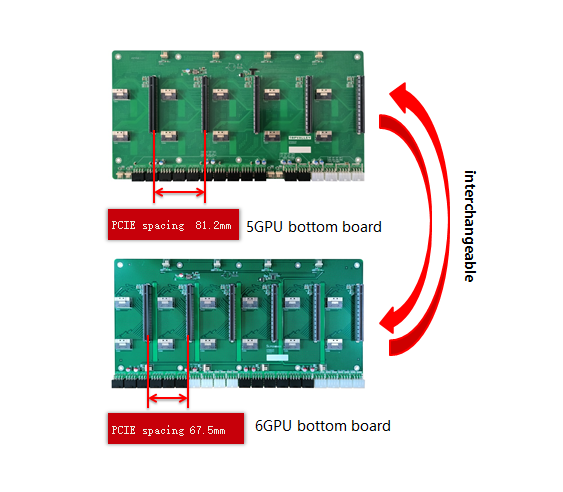

1. The backplane supports 5 graphics cards, and the PEIe spacing is 81.2mm 2. The backplane supports 6 graphics cards, and the PEIe spacing is 67.5mm 3. These two bottom plates are interchangeable, please purchase according to your needs. If you have other questions please contact us.

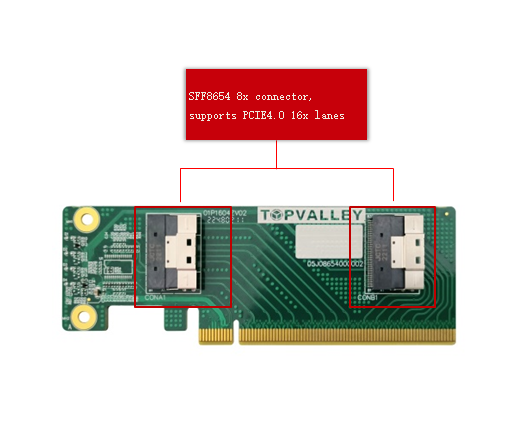

PCIe to 2*SFF8654 8x SWITCH CARD
This GPU server platform is designed as a model with a motherboard and a backplane. The conversion between the motherboard and the backplane is linked through the PCIe to 2SFF8654 switch card we designed.
Company Profile
Shenzhen Toploong Technology Co., Ltd. was founded in 2000. With professional designers, advanced equipment and reliable products,our company becomes a professional high technology enterprise engaged in exploiting, producing and selling IT products. All of us have been devoted to exploiting and producing industrial server cases and kinds of nonstandard cases for many years. We can design a variety of IPC, hot-swap series, 1U server series, etc. and have successfully pushed the industrial automatic control industry forward, bringing many good favorable products and decreasing the cost largely for consumers.
