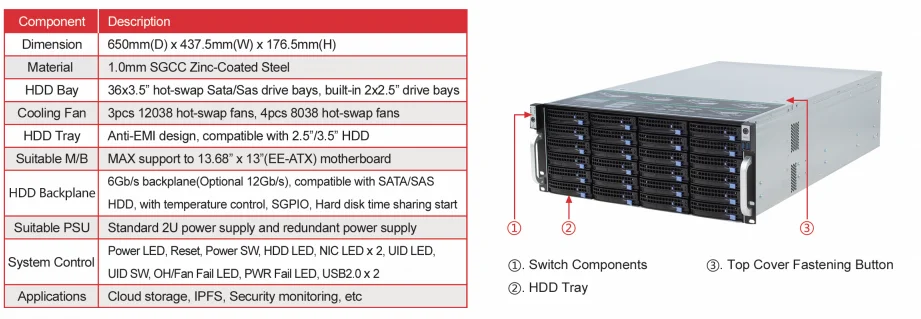

4U 36Bays rackmount Storage server chassis with 6gb/s expansion backplane 3.5" hdd compatible with 2.5inch hdd tray

This 4U Hot-swappable storage server chassis is made of high quality imported steel, which is environmental protection and fingerprint resistant 1.0MM SGCC. It has 36 disks high-density storage directly connects to LSI 35X36R 6Gb Expansion backplane. The special backplane is compatible with Sata/SAS hard disks, support fan PWM intelligent speed regulation, SGPIO function, hard disk time-sharing startup, Nvme hard disk, cold storage, JBOD cascade, hot swap fans, etc. The PSU position compatible with CRPS redundant power supply (Delta , Quan Han, Great Wall, etc.).



▶ 4U supports 36 hot-swappable hard drives.

▶ High-speed stable and powerful hard disk backplane.

▶ Excellent heat dissipation system composed of 3 12038 hot-swappable fans and 4 8038 powerful fans.

▶Enough cabinet capacity to support different size motherboards. Various standard motherboards of 13.68"*13" and below can be installed.

▶Compatible with multiple power supplies, support CRPS redundant power supply, 2U power supply.

▶Has a wide range of applications, applied in cloud storage, distributed storage, big data, security monitoring and other fields



Advanced HDD BAY Design

The S465-36 server case has 24 front 3.5" HDD and 12 rear 3.5" HDDs. The HDDs are compatible with 2.5" HDD and SSD .There are 2 optional 2.5" SSDs with hot-swap on the rear window. The hard drive drawer box is a screw-free installation and tool-free disassembly design. It has anti-EMI function and is compatible with 2.5"/3.5" HDD/SSD. Its sliding rail design makes extraction smooth.

Multifunctional HDD Backplane

The high-speed 24-bay 6Gb/s expansion hard disk backplane PCB is made of a 2.6mm thick 10-layer board, which is durable and not easily deformed.

The expansion chip adopts LSI 3X36R/35X36 chip, compatible with Sata/SAS hard disk, supports fan PWM intelligent speed regulation, SGPIO function, hard disk time-sharing start, Nvme hard disk, cold storage, JBOD cascade and other functions. The backplane uses 2 square 8Pin and 6 large 4Pin interfaces for power supply, and supports hard disk short circuit protection.

The electronic components of the extended backplane adopt imported solid capacitors, and the backplane connection components adopt brand connectors such as Amphenol and Molex, which are stable and reliable.

Excellent heat dissipation

The front panel and both sides of the chassis adopt the classic honeycomb grid design, which can form a good heat dissipation channel

The chassis comes standard with three 12038 hot-swappable ball fans (fans can be replaced with electricity) and four 8038 ball fans. These fans have the characteristics of high rotation speed, high wind pressure, and high air volume to form a heat dissipation channel that moves forward and backward. This reasonable heat dissipation design has good heat dissipation performance and ensures the stable operation of the server..

Huge Cabinet Capacity

The large-capacity chassis can be compatible with standard motherboards (EE-ATX/dual motherboard SSI-EEB/E-ATX/ATX/M-ATX/Mini-ITX) of 13.68"*13" and below on the market, 7 half-height cards PCI/PCIE expansion slot has good expandability!Enough server chassis capacity makes internal wiring easier.

  Shenzhen Toploong Technology Co., Ltd. was founded in 2000. With professional designers, advanced equipment and reliable products, our company becomes a professional high technology enterprise engaged in exploiting, producing and selling IT products.

  All of us have been devoted to exploiting and producing industrial server cases and kinds of nonstandard cases for many years. We can design a variety of IPC, hot-swap series, 1U server series, etc. and have successfully pushed the industrial automatic control industry forward, bringing many good favorable products and decreasing the cost largely for consumers. Now, our products are extensively applied in network, monitoring & control, security & production, broadcast & television, electric power, instrument, etc. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for internet servers (website/E-mail/firewall/VPN/storage), network game servers (DB/Game/Gate/Log-in/Web/SQL), high-tech servers (NAS and SAN) and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

   Our major products include 19" server case, industrial computer case, network case, rackmount chassis, nonstandard cabinet, and kinds of operating cabinets, which are steady and reliable. We cooperate closely with leading power supply manufacturers, such as: Zippy, Enhance, and Huntkey. We advocate the advanced culture, pursue advanced management administration and talent philosophy, set up united and harmonious viewpoints and honest and faithful ethics, strengthen the construction of material civilization and spirit civilization, strengthen the cohesive force of the staff inside, set up a good image of our enterprise outside and strengthen the core competency of our company constantly.

  Our slogan is: Choosing us means that you have managed a fabricating factory! We sincerely welcome you to contact us for future business relationships and achieving mutual success! We are looking forward to the future. We are full of confidence because we believe our company will make progress day by day with your support and cooperation.



Packing&Shipping:

Each item was well packed before shipping.We use pearl cotton and inner box and corner guard and outer box to protect your chassis.

Price on display is for goods only not including shipping cost.

Pls contact seller ablout shipping quotation before your order.
